Quick Start Guide

This guide will help you create your first population map using the QGIS pypopRF plugin. We'll walk through a basic workflow from project setup to final output, including optional advanced features.

Overview

A typical workflow consists of these steps:

  1. Project initialization
  2. Data preparation
  3. Optional feature setup
  4. Running the analysis
  5. Viewing results

Before You Begin

Ensure you have:

  • QGIS installed and pypopRF plugin enabled

  • Required data files:

    • Census data with population counts (CSV)
    • Mastergrid file defining analysis zones (GeoTIFF)
    • Covariate rasters (e.g., building footprints, infrastructure)

  • Optional data files:

    • Water mask for excluding water bodies
    • Constraint rasters for specific areas
    • Age-sex population structure data (CSV)

Step 1: Initialize Project

  1. Open QGIS
  2. Click the pypopRF icon in the toolbar or find it in Plugins → pypopRF
  3. In the plugin window:
    • Select the "Project" tab
    • Choose a working directory
    • Click "Initialize New Project"

A new project structure will be created:

my_project/
├── data/      (for input files)
├── output/    (for results)
│   ├── agesex/  (for age-sex outputs)
│   └── logs/    (processing logs)
└── config.yaml

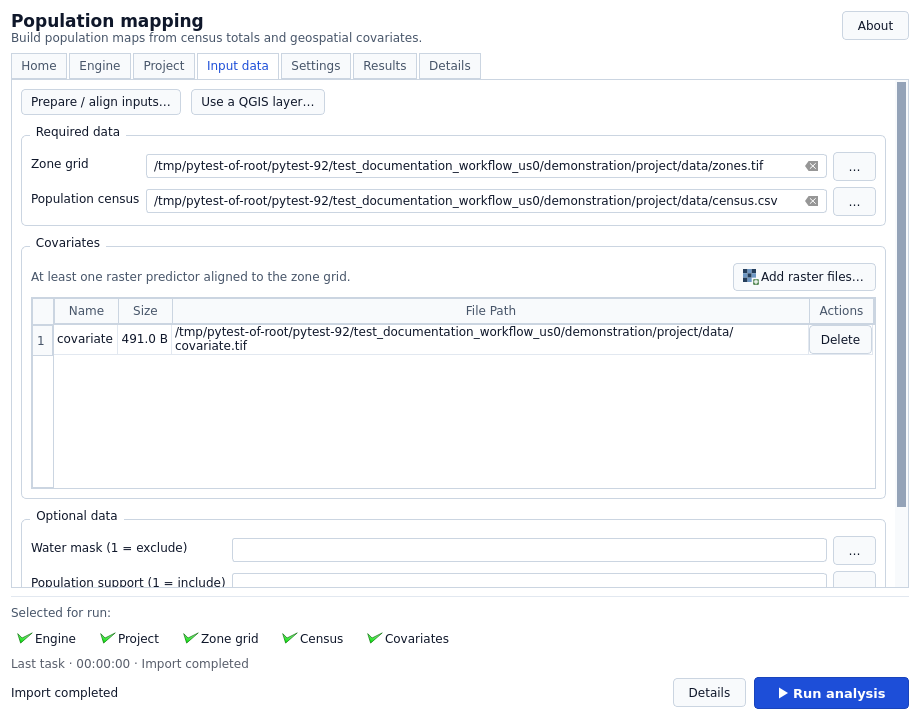

Step 2: Prepare Input Data

Required Files

Mastergrid File:

  • Click "Browse" next to Mastergrid
  • Select your zone definition raster
  • Format: GeoTIFF with unique zone IDs

Census Data:

  • Click "Browse" next to Census File
  • Select your population data CSV
  • Must contain: zone IDs and population counts

Covariates:

  • Click "Add Covariate"
  • Select building/infrastructure rasters
  • Add at least one covariate

Optional Files

Water Mask:

  • Click "Browse" next to Water Mask
  • Select raster defining water bodies
  • Areas with value 1 will be excluded

Constraints:

  • Click "Browse" next to Constraints
  • Select raster with constraint areas
  • Used to refine population distribution

Age-Sex Data:

  • Click "Browse" next to Age-Sex Census
  • Select CSV with age-sex structure

Step 3: Configure Settings

  1. Census Fields:

    • Enable parallel processing for faster analysis
    • Set Population Column Name (e.g., "pop")
    • Set ID Column Name (e.g., "id")

  2. Processing Options:

    • Enable parallel processing for faster analysis
    • Set number of CPU cores (recommended: 6+)
    • Adjust block size for memory management
    • Enable block processing for large areas

  3. Output Options:

    • Choose whether to add layers to QGIS
    • Set logging level for process monitoring

Step 4: Run Analysis

  1. Verify inputs (green indicators show ready state)
  2. Click the "Start" button
  3. Monitor progress in the console window:
    • Feature extraction progress
    • Model training status
    • Prediction and mapping progress
  4. Wait for completion message

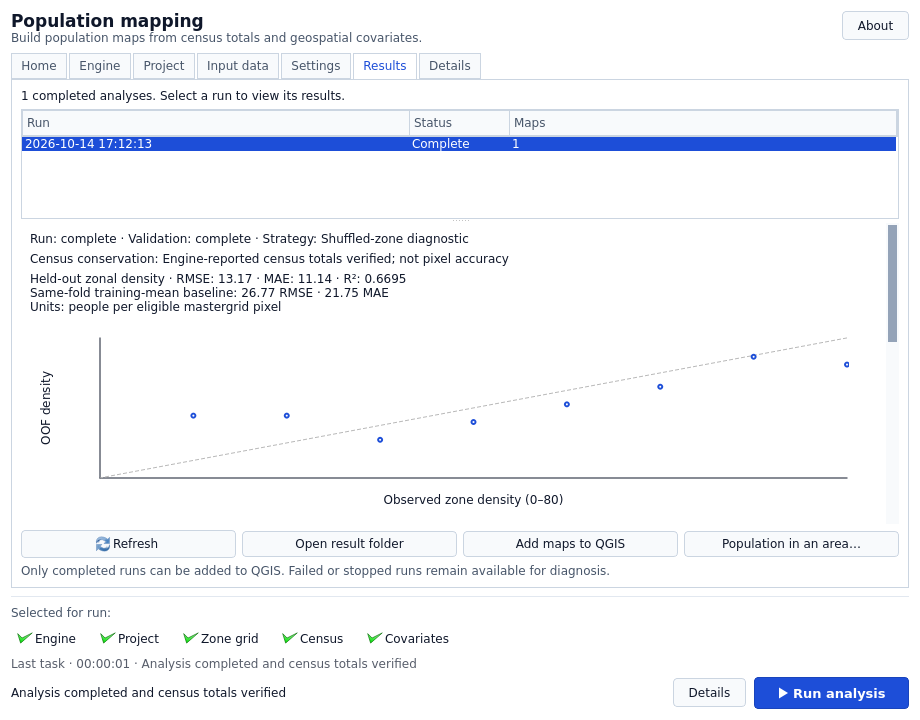

Step 5: View Results

The analysis produces several output layers:

Main Outputs

  • prediction.tif: Initial population prediction
  • normalized_census.tif: Census-adjusted values
  • population_unconstrained.tif: Basic distribution
  • population_constrained.tif: Distribution with constraints

Additional Outputs (if using optional features)

  • normalized_census_unconstrained.tif: Unconstrained census-adjusted values
  • agesex/*.tif: Age-sex structure maps
  • model.pkl.gz: Trained Random Forest model
  • scaler.pkl.gz: Feature scaler
  • features.csv: Extracted features with importance metrics

All outputs are saved in your project's output directory and can be automatically added to QGIS.
